Vulkan ES/HD
Flexible stainless steel hose systems
Flexible stainless steel hose systems for industrial gases and oxygen, free of oil and grease, suitable for high-purity gases, including pressure testing and certificate, ready for installation. Both sides with gas type specific connections acc. to many national and international standards available, special connections on request.

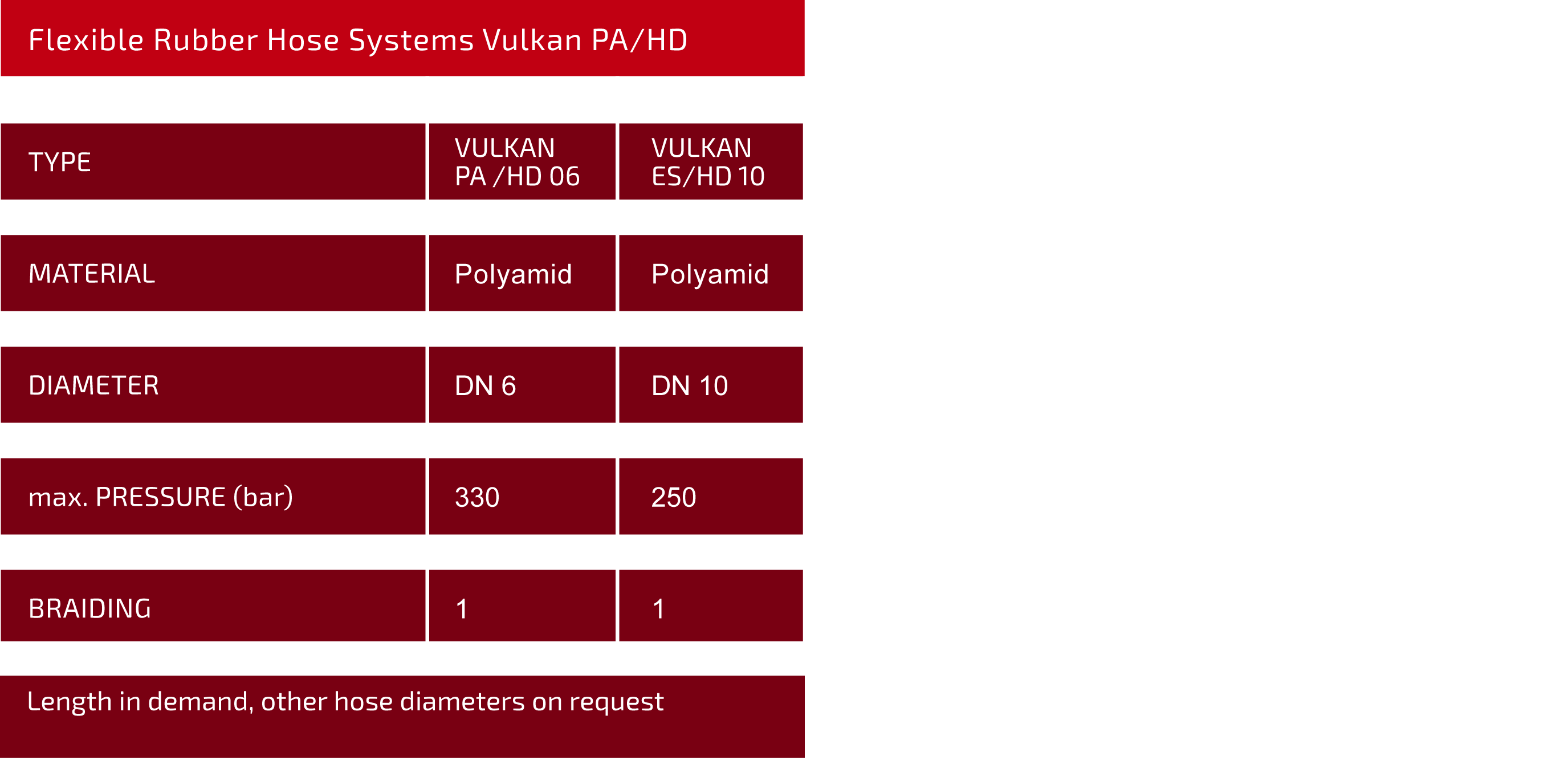

Vulkan PA/HD
Flexible rubber hose systems
Flexible rubber hose systems for industrial gases except oxygen, free of oil and grease, suitable for pure gases, including pressure testing and certificate, ready for installation. Both sides with gas type specific connections acc. to many national and international standards available, special connections on request.
The following accessories are available for stainless steel corrugated hoses and plastic hoses:
Anti-whip cable
fully integrated, mounted in the screw connection or with 2 loops
Anti-kink spring
prevents kinking and tearing of the tube at the welded or pressed connection
Agraff hose protection
protects the hose against external damage
90 ° Elbow
welded or pressed, prevents kinking of the hose at the bottle or the bundle
Pressure test gauge and purge valve
for monitoring and venting the hose before disconnecting, both options also available separately
Connections for high-pressure hose systems
- Ball connectors according to DIN 854 / EN 560 BSP in sizes 1/4“, G3/8“, G1/2 „ and 3/4“
- Pipe connections in sizes from 6, 8, 10, 12mm
- Clamp ring fittings in sizes from 6, 8, 10, 12mm
- Cutting rings according to DIN 235 and EN SO 843 -1

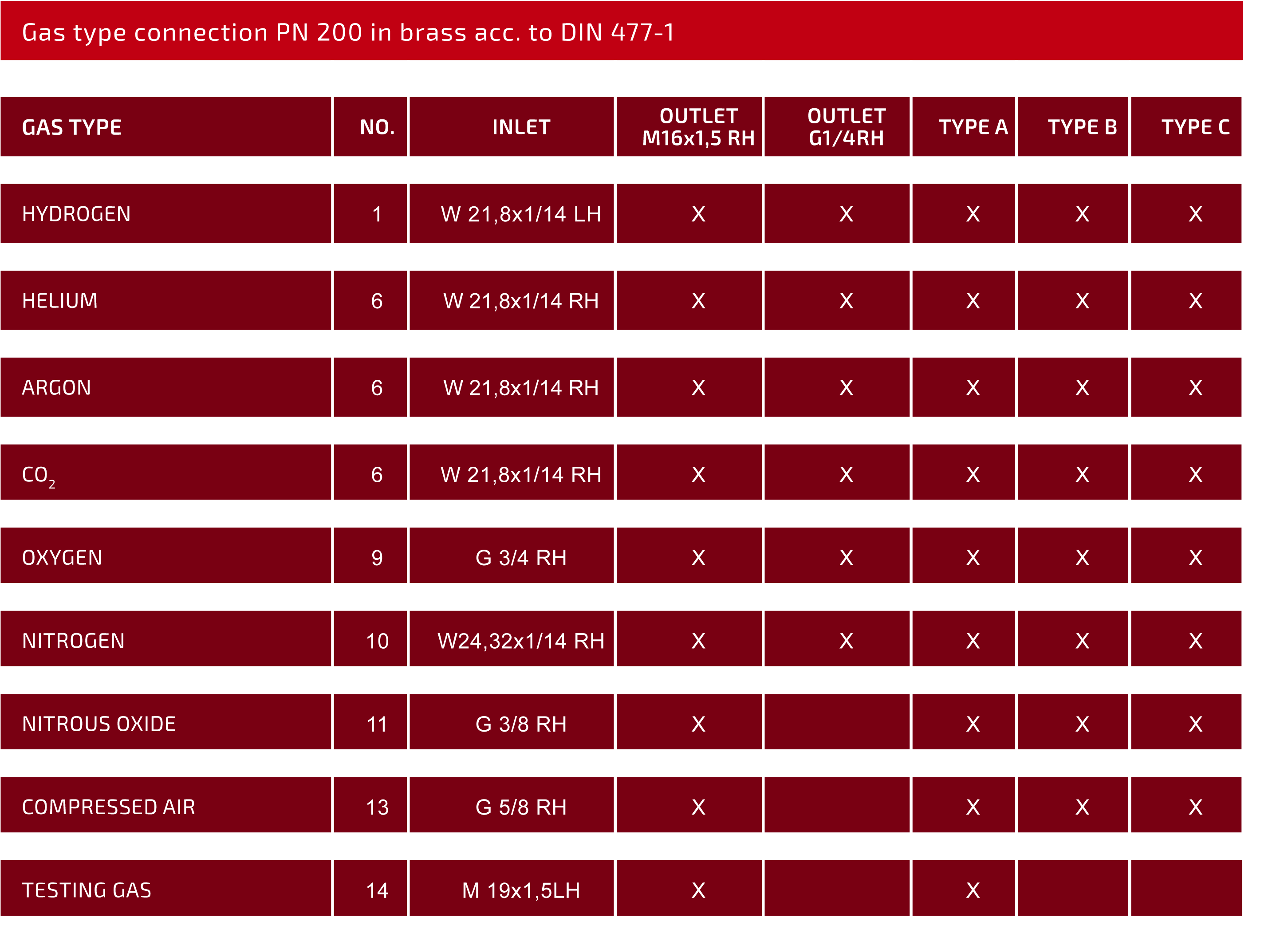

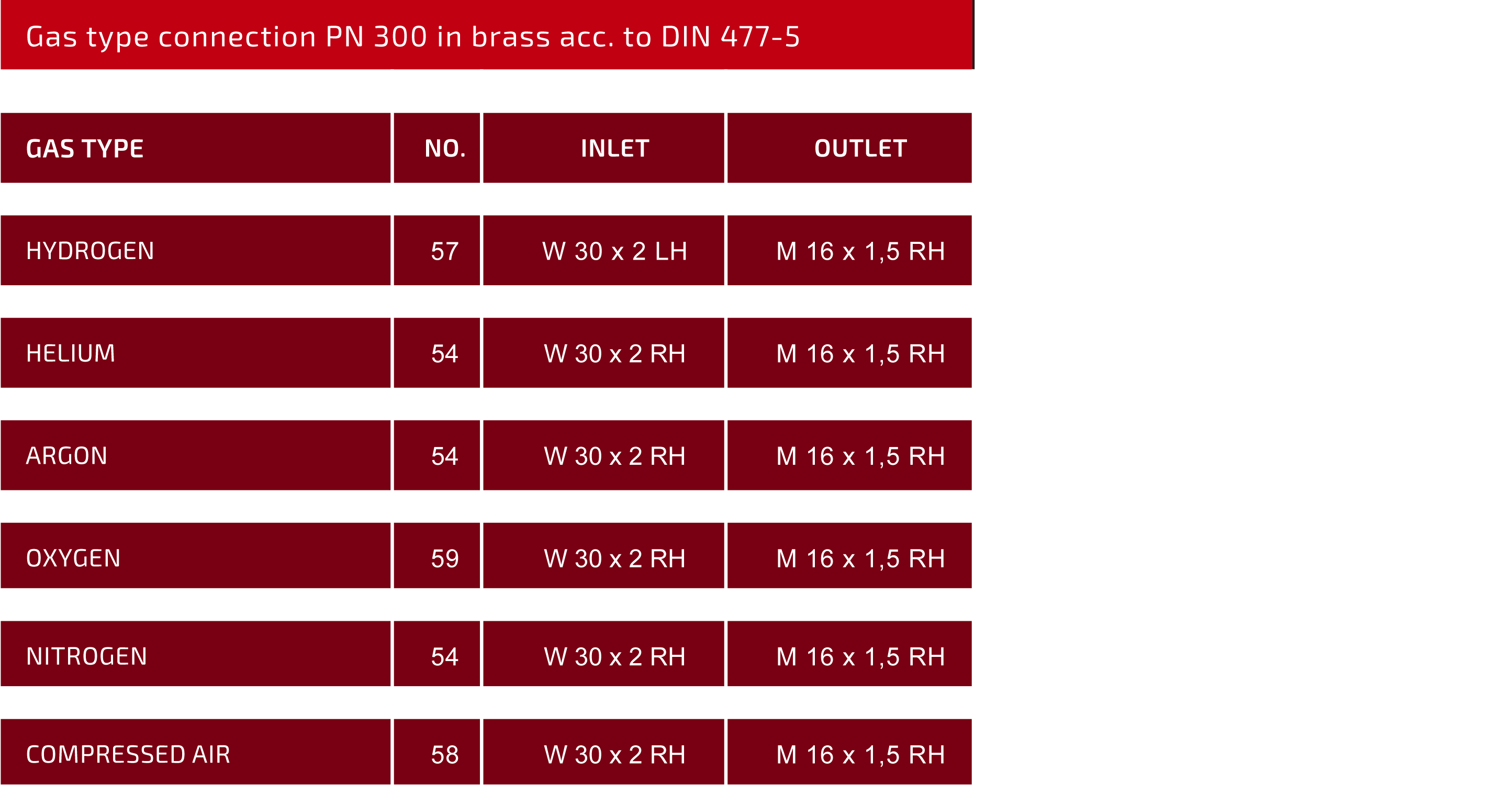

- Gas cylinder connections DIN 477-1 and DIN 477-5
- Gas cylinder connections for many foreign standard connections with internal or external thread NPT 1/4
- All the connections in stainless steel for ES / HD or galvanized steel and brass for PA / HD high-pressure hose systems
Type A = hexagon nut connection bolt with flat seat
Type B = long engrailed hand tight nut
Type C = short engrailed hand tight nut with O-ring
